CONTINUOUS EMISSION MONITORING SYSTEM (CEMS)

CONTINUOUS EMISSION MONITORING SYSTEM (CEMS) - OUTSPAN

Automation - Electrical Solutions

Investor: CAFé OUTSPAN VIETNAM LIMITED

Location: Lot L1, Nhut Chanh Industrial Park, Nhut Chanh Commune, Ben Luc District, Long An

Industry: Food & Beverage

Year: 2019

Scope: ESTEC designs, supplies equipment, constructs, monitoring system

Customer requirements:

Contractor to provide a real time air pollution monitoring system. CEMS is a system that comprises of sampling, conditioning, and analytical components and software that is designed to provide direct, real time, continuous measurements of flue by analyzing representative samples.
It is an important tool for pollution monitoring, control and reporting. The system ensures data accuracy, higher monitoring frequency, minimal manual intervention, firm regulatory monitoring and better transparency to strengthen the pollution control regime.

ESTEC’s Solutions

Main components:
- Gas Analyzer for SO2, CO, NOx, O2 from IMR USA.
- Dust, temperature, pressure… from Durag Germany.
- Panels, accessories from qualified Local brands.

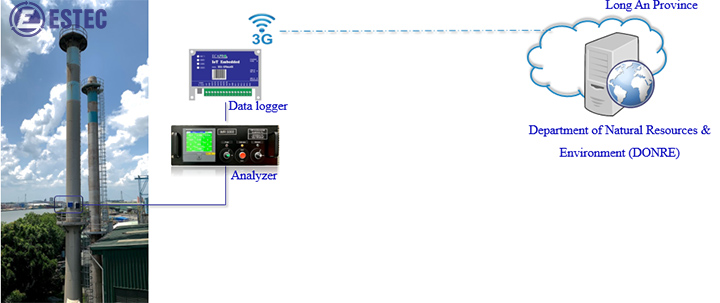

Control system architecture
- IMR 5000 Gas Analyzers
- Durag Instrument (Temp. Press, flow, Dust...)
- Dataloggers
- Webserver
- GPRS/3G communicate to DONRE
Instrumentation
- Gas Analyzers SO2, CO, NOx, O2
  - Gas Dryer IMR 400

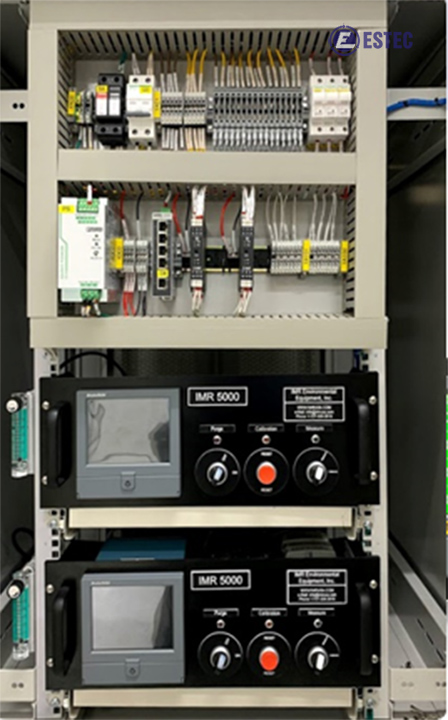

  - Gas Analyzer IMR 5000

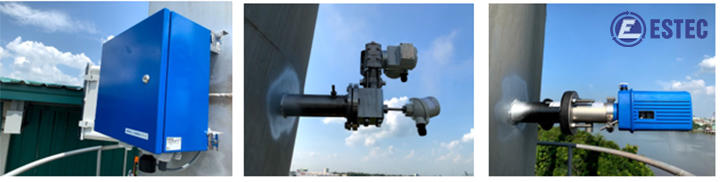

- D-FL 100 Volume flow measuring system
  - 01 Flow sensor
  - 01 Pressure sensor
  - 01 Temperature sensor
- D-R 220 Dust and opacity monitor

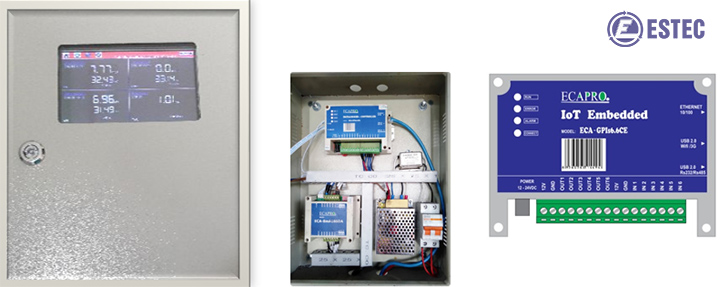

- Datalogger
- Provide a real time air pollution monitoring system, CEMS is a system that comprises of sampling, conditioning, and analytical components and software.
- Monitoring SO2, CO, NOx, O2, Flow, pressure, Temperature, Dust

Customer benefits

High quality of project management and execution.
Designed to provide direct, real time, continuous measurements of flue.
Ensures accuracy, high monitoring frequency, minimal manual intervention, firm regulatory monitoring and better transparency to strengthen the pollution control.
Saving cost of coal & ground coffee by process optimization
(about 200mil. VND per month).
Certificates:
- Certificate of Verification SO2, CO, NO.
- Calibration Certificate for O2.
- Calibration Certificate for Dust Monitors.
- Calibration Certificate for Flowmeters.
- Calibration Certificate for Temperatures sensors.
- Calibration Certificate for Pressures sensor.
